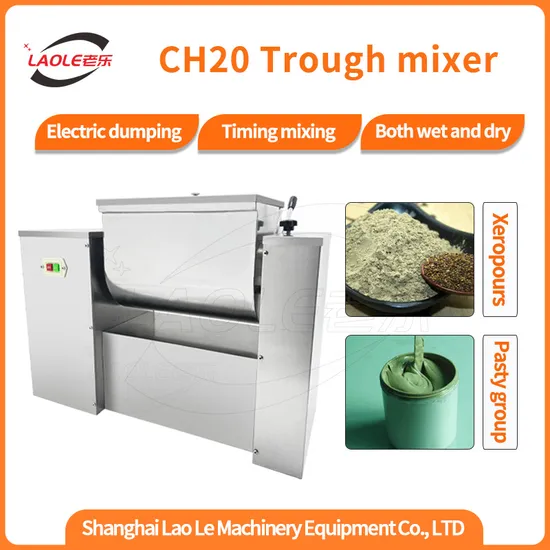

Trough Shape Poultry Feed Mixer Machine

Basic Info

Model NO.	CMPT
Layout Type	Horizontal
Mixing Drum Shape	Drum
Additional Capabilities	Granulating
Operating type	Cycle Operating
Condition	New
Size	50-30000L
Transport Package	Wooden Case
Specification	CE, SGS, GMP
Trademark	CMX
Origin	Shanghai
HS Code	8474
Production Capacity	500PCS/Year

Product Description

Trough shape Poultry Feed Mixer machine

Questions for Buyer:

1, What materials do you mix? (Names of raw materials?) 2, What is the powder fineness (or particle size)? (mesh, mm) 3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3) 4, How many kgs or liters to be mixed per batch? 5, What is the distance from bottom discharge outlet to ground? (cm, mm, m)

1 Working principle:
CMPT series Trough Mixer is used to mix powder, paste and inhomogeneous materials. The tank is horizontal groove type and mixing shaft is through-going type; so this design makes cleaning easily. Contact part of Trough Mixer is anti-corrosion stainless steel. Mixing tank can automatically reverse, so this structure makes discharge easily. This series of groove type mixer solve the problems like no high uniformity, dead corner because of different specific gravities of materials.

2 Technical specifications:

Model	Volume (m3)	Feed Capacity (kg/batch)	Overall dimension L*W*H (mm)	Mixing speed (rpm)	Mixing power (kW)	Discharge power (kW)
CMPT-150	0.15	30	1360*540*1100	24	3	0.55
CMPT-200	0.2	40	1460*600*1200	24	4	0.55
CMPT-300	0.3	60	1900*750*1300	24	4	1.5
CMPT-500	0.5	120	2150*860*1560	20	5.5	2.2
CMPT-750	0.75	150	2300*1260*1800	19	7.5	2.2
CMPT-1000	1.0	270	2500*1300*1860	19	7.5	3
CMPT-1500	1.5	400	2600*1400*1940	14	11	3
CMPT-2000	2	550	3000*1500*2160	12	11	4
CMPT-2500	2.5	630	3500*1620*2250	12	15	5.5
CMPT-3000	3	750	3800*1780*2500	10	18.5	5.5
