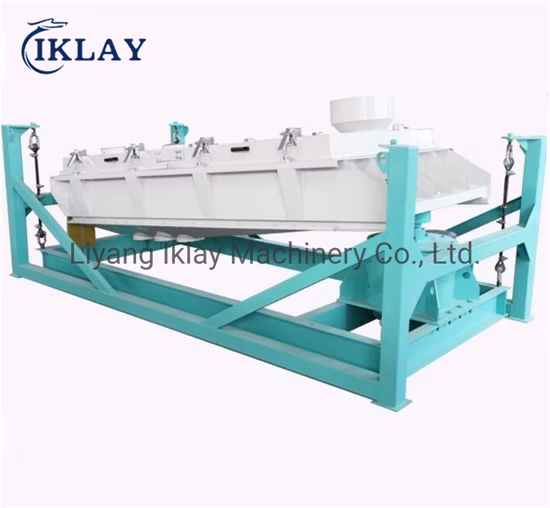

Rotary Screening Machine Vibrate Classifier Sieve Machine Rotary Vibrating Screen Supplier

Basic Info

Model NO.	SFJH80, SFJH110, SFHJ130, SFHJ140, SFHJ150
Pellet Mill Type	Ring Die Pelleter
Bulking Machine Type	Sigle Screw Bulking Machine
Expanding Method	Wet Expansion
Condition	New
Applicable Materials Shape	Granular
Warranty	2 Years
Application	Wood Fellets/Feeds Fodder Sifting/Screening
Sifting Rate	98%
Capacity	1-25th
Transport Package	Wooden Case or Iron Frame
Trademark	IKLAY
Origin	China
HS Code	84388
Production Capacity	1000PC/ Year

Product Description



TECHNICAL PARAMETER

Model	Power (KW)	Capacity(T/H)		Quantity of deck
		Mash feed	Pellet feed
SFJH80X2C	1.5	4-5	5-6	2
SFJH80X3C	1.5	4-5	5-6	3
SFJH110X2C	2.2	6-7	8-10	2
SFJH110X3C	2.2	6-7	8-10	3
SFJH130X2C	3	8-10	10-12	2
SFJH130X3C	3	8-10	10-12	3
SFJH140X2C	4	10-12	14-16	2
SFJH140X3C	4	10-12	14-16	3
SFJH150X2C	5.5	15-18	20-23	2
SFJH150X3C	5.5	15-18	20-23	3



FEATURE

1.It is combined with circumference,ellipse,straight line motion mode so that sieving effect is good.

2.The sieving boat is belt driven, focusing on balance and low noise.The support fortail part is improved elastic support that has small vibration and low noise.

3.Reinforced base ensures a more balanced operation.We can use hanging structureaccording to the actual site conditions to meet customer needs.

4.The rope hanging structure is improved, to avoid wire wear.

5.Integrated or combined screen frame structure can be adopted, light weight,high ri-gidity and good sealing.

6.This is two layers screen frame design.Three layers screen frame is also available.

7.It has wide application: the screening and classification of powdery or pellet feed,the precleaning of unprocessed materials in feed mills,the classification of intermedi-ate products after secondary grinding in large and medium scale feed mills.
